Monday, April 27, 2015

Wordsmith: Part II- Spine

To attach the bound folios to the cover of the book, there are a number of ways that have traditionally been used, everything from threading strings through the edgeboard to the use of screws and spirals, but none of those are very appealing to this particular project. However, to bind the pages to the cover, there is some work that first needs to be done.

I am continually surprised by how often unrelated tools surface into random projects. This time, it's a hand plane to trim the edges of the pages now that they are held firmly together. Sharpening the blade took a little work on the stones, but in no time they were ready to shave. Having them as sharp as possible is important for preventing tearout on the corners.

Clamping the book as tightly and squarely as possible between two boards, and then to the bench, it's time to work. I set the boards just proud of the paper which helps keep everything flat and plane. That extra inch of width and rigidity also prevents the softer pages from just bending over.

Taking off shavings so thin they are almost translucent, the plane slowly levels out the edges. The strange thing is, at such a thin pass, the fibres bind together into a single ribbon that shows no signs that it's actually 400 individual pages pressed together.

Before too long, the pages are plane and smooth.

Flipping the book around and doing the same to the other two edges (top and bottom), checking for square now and again, it is now ready for mulling and cloth. It should also be noted that the outer long edge should be done first, and on the other two, the plane blade should travel from spine to edge. This keeps the corners sharp and free of half attached dusty fuzz.

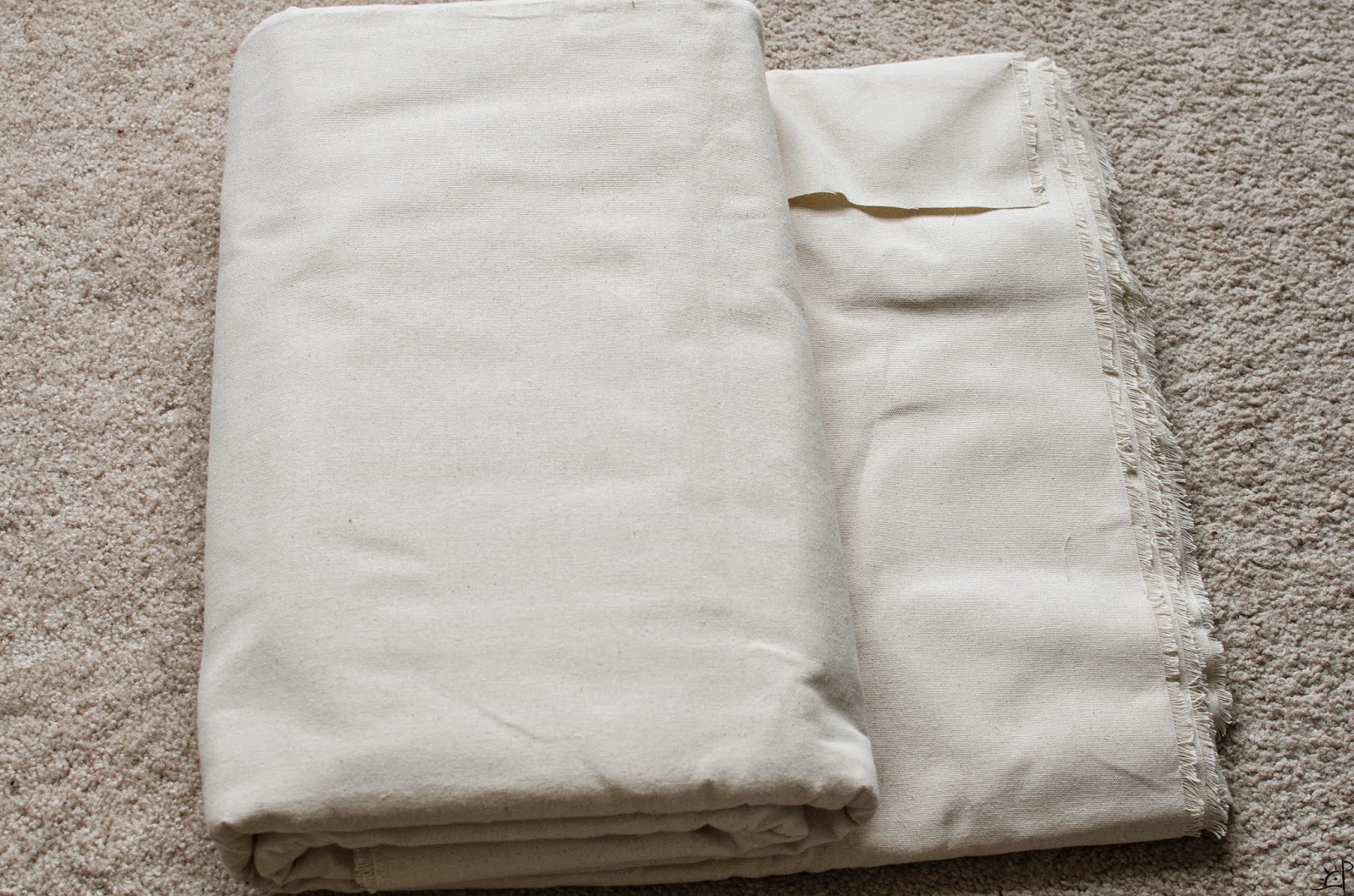

Now then, with the pages bound, something needs to hold them to the covers. Cloth is a usual medium when other methods are not used, and in this case, the effect will hopefully yield the appearance and strength of regular hardback books. From a bolt of canvass, I cut three strips about 70% the length of the book's circumference and the width of the space between stitches on the spine of pages.

 Roughly positioning them on the pages shows the orientation a bit clearer. They do not need to be the full length of the pages because that far out, it won't be holding any weight anyway.

Using the same glue as to bind the spine, each of the three places where the canvass will go is covered with about the same thickness as the strip of cloth.

When the cloth was placed over the glue, I pulled it tight and pressed it into the spine, using my fingers to spread it to the edge and make sure there was contact everywhere.

After the glue dried for a day or so (this type of PVA glue is not meant to be gap filling and takes a long time to dry in thick application) I took a needle and sewed through the edge along the existing stitch, adding a physical reinforcement to the glue.

Next, I added a headband to the top and bottom to mask the unevenness in the pages at the spine. And, in my opinion, it adds a little more legitimacy to the project.

Each of the two strips were cut to the length of the book's thickness and held in place with glue in the same way as the previous strips of cloth. As they won't be seeing any movement or bear any weight, that is more than sufficient.

On top of the cloth, a non-stretching mesh called mull is used as extra support to hold the covers on. A rectangle long enough and wide enough to just cover the three bits of cloth is all that's needed, but I used twice the thickness (pictured) because the weave is so loose.

To hold it onto the pages, I just used a little glue, much like I do when binding sheetrock tape to the back of a bow. It takes a little patience to keep it stuck before drying, but once the glue becomes a bit more tacky it holds well enough.

As with the cloth, the glue is laid down first and the mull pressed into it, wiping it to the edges and pulled down along the corners.

Next up is making the cover, gilding the edges, and binding the cover to the book.

Sunday, April 19, 2015

Wordsmith: Part I- Folios

Five years ago on a trip to Romania, a restaurant I dined at had a set of menus with a beautiful brass hinged, leather cover. For something as simple as it was, I could not help but appreciate the nature of the bound menu book. Since then, I have been entranced by the idea of bookbinding which has gone unsatisfied. Until now. Originally with the intent of binding a few cookbooks with family recipes, I quickly found myself carried away into something a bit more substantial. Adapting various techniques on the matter and bridging them with a few of my own, here is a look into the Wordsmith.

Seemingly every direction in bookbinding implies that, unless using screws or spiral bindings, the folios (smaller groups of pages within the larger binding) begin a pages folded a number of times then trimmed on three edges, so the spine remains folded paper. It can be one page folded in half, or larger sheets in quarters or eighths or into however many pages preferred. The reason for doing this is to make sewing the spine easier, but when printing through conventional methods this becomes significantly more difficult. Even printing four pages onto one standard size sheet requires a great deal of planning and progressive margin adjustment for thicker volumes. To counteract this, I decided not to fold anything at all and simply to cut a letter size page in half to form two 5,5x 8,5 sheets which will then be printed front and back.

Setting a guide on a guillotine style paper cutter allows quick and fairly precise work. Enough to be accurate within 1/32", which is more than sufficient for printing. Any unevenness in the binding will be more than this tolerance, and will be cleaned after the folios are bound into the final size volume.

After printing all the pages (or, as most hand bound books in this era are used for forward-produced content, blank pages), a stack of around 25 are taken together and clamped near the spine edge with as accurate an alignment as possible, leaving just over ,25" space between the edge of the paper and the boards. After experimenting with various positions, I found this best to achieve a tight binding while still allowing space to avoid the pages from becoming glued to the boards.

I used a standard PVA glue, and although there are various recipes out there for traditional flour glues and commercially available bookbinding-specific PVA glues, I found that Titebond III (wood glue) does the job. While clamped, I ran a thin bead of glue down the edge of the spine and pressed it between the pages with a finger, using the excess to cover the corner and spread it onto the face of the outer two pages as slightly visible in the above picture. This ensures that the outermost pages are held to the stack, a problem I had when I did not wipe the glue over the edges of the spine. While this is only a temporary means of binding the folios, better secure now than dealing with it later.

To make quick work of sewing, I made a steel guide for the drill  which will be clamped over the folios. Traditional awls are used to punch through the spine, which is folded, but since that does not work here, I will be going through each sheet from the top down instead of inside to out. Six sets of holes spaced between both ends (skewed towards the ends with one in the centre) are plenty for the 8,5" length.

Aligned with one end on the bottom of the page, the edge along the spine, the guide creates very quick and consistent work of the 13 folios in this project. I used the smallest bit in the standard set of drillbits I had, which I believe is 1/16", to create holes slightly larger than the needle I will be using later.

In order to bind the folios, I used a waxed cotton thread and one needle for each set of holes. I thought about using just the one needle but realized that the tightness of the binding will be much greater if they are all done at the same time, and the folios will not be manhandled as much in the process.

To start, I tied a knot around each hole in the topmost folio (pages 0~50) and fed the excess through to the next knot to keep things tidy. This is something I changed after completely binding the folios to remove the ridge left behind. It should also be noted that the knots do not need to be overly tight, and depending on how close the holes are to the edge of the page, it may sever the paper.

This is where I start inventing things. Typically a strip of cloth is used to sew to the folios, but the orientation of holes is not suited for that. So I start looping the threads through two folios at a time, then pull tight before moving to the next.

Using this configuration of knots leaves a very strong binding that minimizes the chance of tearing through the holes.

In effect, two folios are bound together with the loops at a time, and the slack of the thread is carefully removed to hold the duofolios in alignment. Then the needles thread through the next pair until they are all bound together.

With the stack bound, I considered stopping here, but then realized that the pairs of folios are connected with only the one length of thread. In the above photo you can see the slight misalignment of the thread where there are 'corners' to the stitching.

Bringing these together with an overhand knot allows for increased rigidity in the spine and security in the binding. Working up the seam, I tie a knot between each side of the adjoining loops, drawing those 'corners' together.

When I was about half way up each seam, I brought down the loose end from the very first knot and bound it into the the rest of the stitches. This gives a (in my opinion) cleaner finish to the binding and also pulls the topmost knot down into the spine rather than having it stand proud of the top folio.

Finally, I added another layer of glue between the stitching as a last measure in holding it all together. Be careful not to cover the threads, however, as those will be used later as an anchor point for the cloth and mull which holds the pages to the cover.

To be continued...
